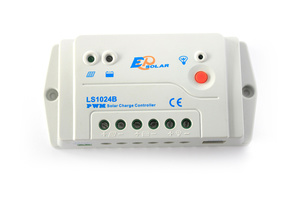

Landstar LS1024B PWM charge controller for solar panel 10A

Landstar LS1024B

The Landstar series from EP-solar is a newly developed series of charge controllers with good performance at a competitive price.

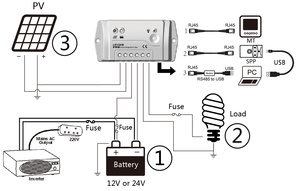

RS-485 socket allows connection of remote display for real-time monitoring, customized setting and control etc.

Features and functions

• System voltage 12V/24V auto detectable
• High efficiency. Temperature compensated PWM charging.
• Indicator shows charging status, battery and load status

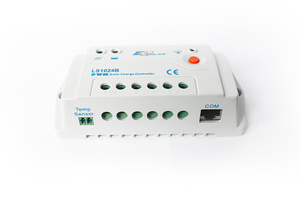

• possible connection of external temperature sensor.
• RS-485 bus communication
• Open standard Modbus communication protocol
• Function for program update
• Extended function via MT50 or PC (optional, not included) enables:
• Display of real-time information
• Programming of parameters
• Energy statistics function

Electronic protection against

• Short circuit
• During discharge
• During charging
• Load overload
• Reverse polarity
• Overheating

Specifications

• Nominal system voltage: 12/24VDC (auto)
• Max current: 10A
• Maximum input voltage: 50V
• Self consumption: 8.4mA (12V), 7.8mA (24V)
• Temp. compensation: -3mV/℃/2V (25℃ ref)
• Working Temp: -35℃~55℃
• Humidity ≤ 95% (NC)
• IP30
• Dimensions: 138.6x69.3x37mm
• Terminal: max 4mm2
• Weight: 0,13 kg

ATTENTION! Manual in English
